How to Install U-Channel Car Door Edge Guard Trim for a Secure Fit
Vehicle door edges are narrow, exposed areas that may contact nearby walls, posts, shopping carts, garage surfaces, or other vehicles during everyday use.
A U-channel car door edge guard wraps around a compatible exposed edge to create a flexible contact layer. Unlike flat adhesive film, a press-on U-channel trim grips the edge from both sides and follows the outline of the panel.
Correct installation depends on more than cutting the strip to length. The vehicle edge must have a compatible thickness, enough clearance, a stable finish, and a shape that allows the internal clip structure to remain securely seated.
Quick Answer
To install U-channel door edge guard trim, first measure the target edge and confirm that the channel opening matches the edge thickness. Clean and dry the area, test the trim without cutting, then press it onto the edge gradually while following the panel shape. Cut only after confirming the final length. After installation, test the door, trunk, or hood carefully and remove the trim if it interferes with closing, weather seals, latches, sensors, wiring, or normal vehicle operation.
What Is U-Channel Car Door Edge Guard Trim?

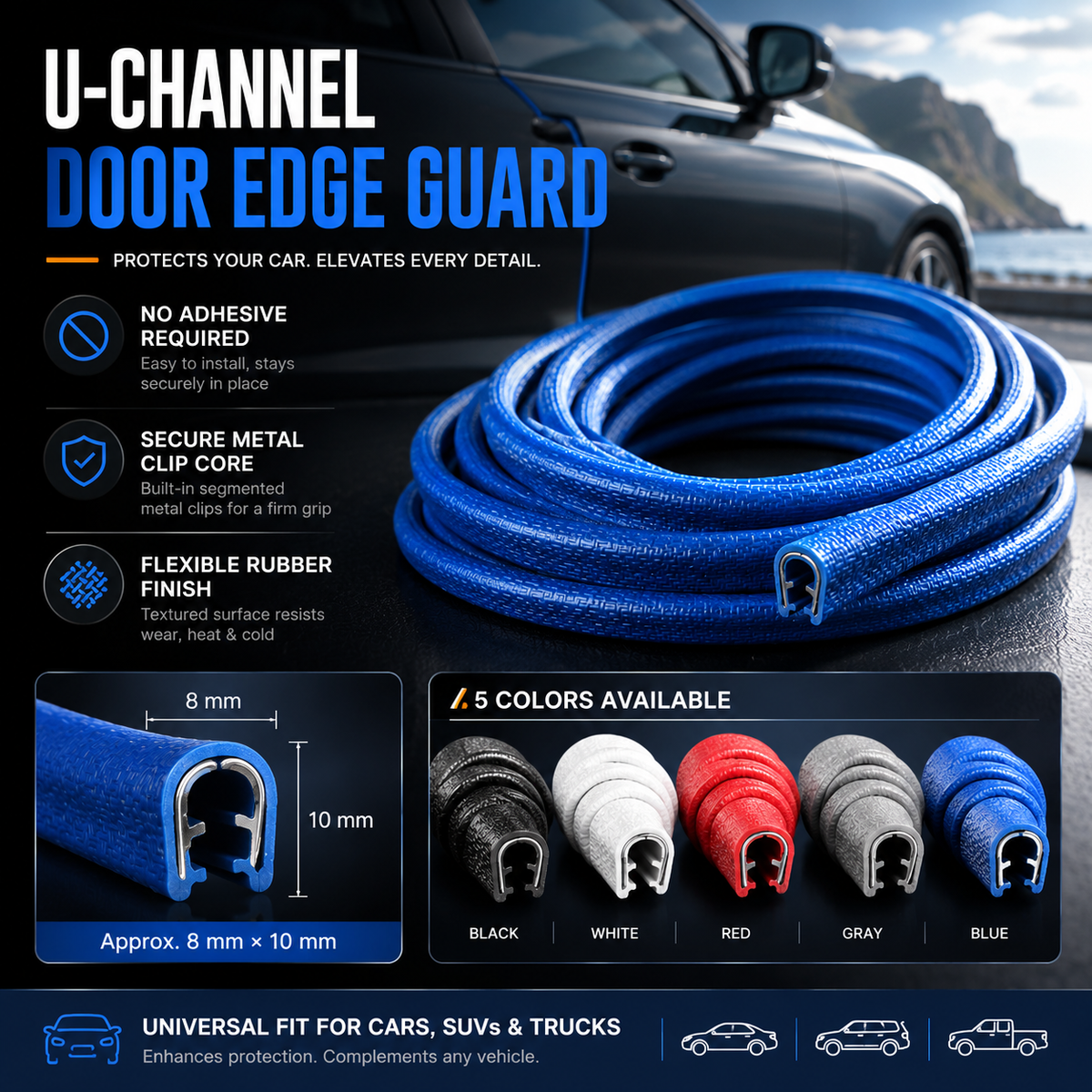

U-channel edge guard is a flexible protective trim with an open channel running along its underside.
The open channel presses over a compatible metal or trimmed vehicle edge. Depending on the product construction, internal clips or a reinforced gripping core help hold the trim in position.

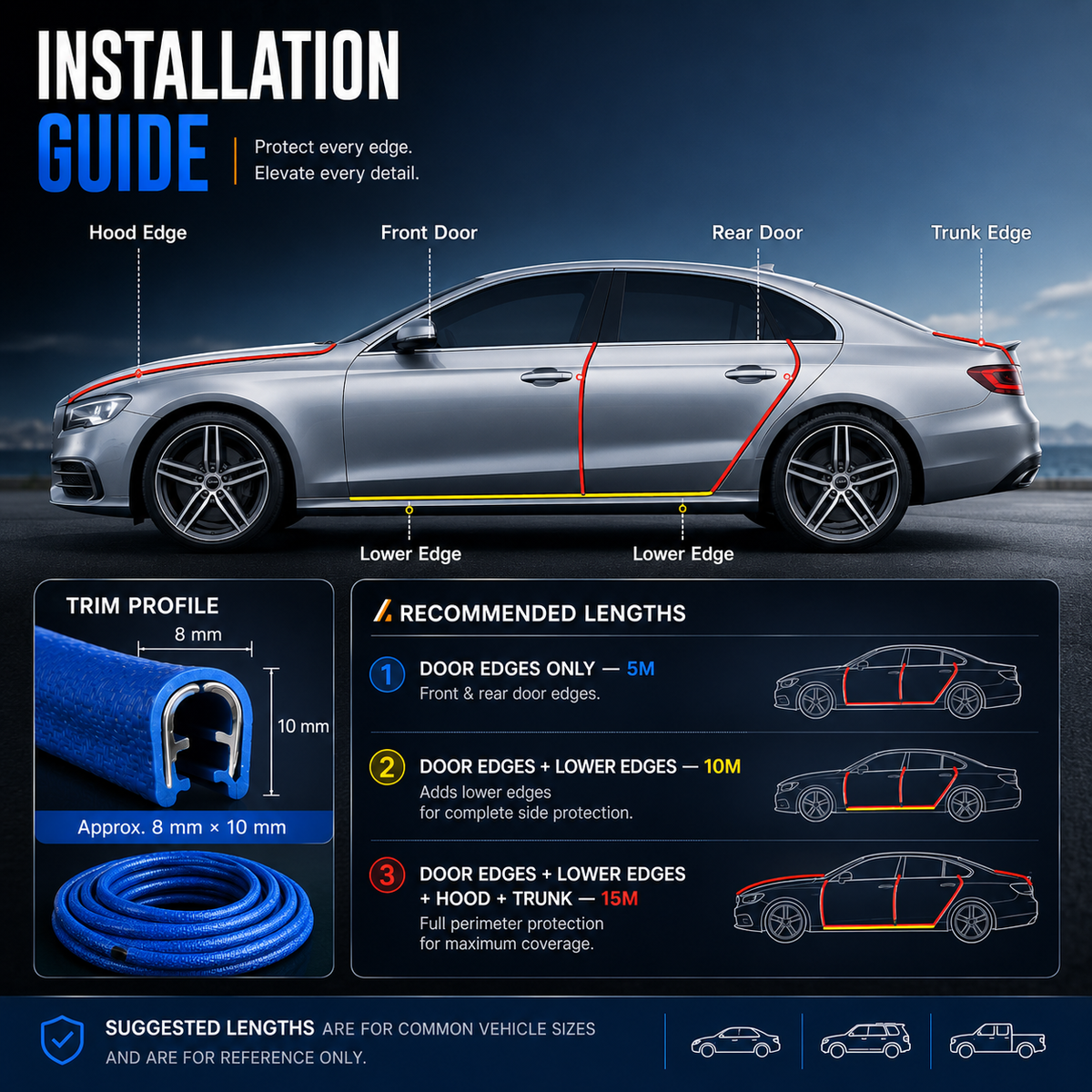

Common installation areas may include compatible:
- Front door edges
- Rear door edges
- Lower door edges
- Trunk or hatch edges
- Selected hood edges
- Other exposed non-moving edges with suitable thickness and clearance
Not every exposed edge is suitable. The trim must not interfere with weather seals, hinges, latches, sensors, wiring, airbags, drainage channels, or panel closing.
The U-Channel Car Door Edge Guard Trim is supplied as a 5-meter cut-to-fit roll. Current product images show a flexible textured exterior, segmented internal clip core, press-on installation, and several color options.
What Can Door Edge Guard Help With?
A correctly fitted edge guard may help create a contact layer between the vehicle edge and nearby objects during light everyday contact.
Possible benefits include:
- Covering a compatible exposed door edge
- Reducing direct light contact with the painted edge
- Adding a finished border around selected panels
- Using one cut-to-fit roll across several compatible areas
- Adding color contrast or a low-profile dark edge
Edge trim does not make a door impact-proof. It cannot prevent all dents, paint damage, panel deformation, or damage caused by strong impacts.
1. Identify the Exact Edge You Want to Protect
Start by deciding exactly where the trim will be installed.
Do not begin with the assumption that every edge on the vehicle can use the same strip.
Inspect:
- The outer vertical edge of each door
- The upper and lower door corners
- The space between the door and body
- The trunk or hatch opening
- The hood edge and surrounding seal
- Nearby latches, wiring, sensors, and drainage areas
The best installation area has a continuous exposed edge with enough clearance for the trim to wrap around it fully.
2. Measure the Edge Thickness
The channel opening must match the thickness of the vehicle edge.
If the edge is too thick:
- The trim may not seat fully.
- The internal clip may become overstretched.
- The outer layer may deform.
- The strip may pull away around curves.
If the edge is too thin:
- The trim may feel loose.
- It may slide during door movement.
- It may fall off during driving or washing.
- The internal clips may not grip securely.
Measurement Tip
Measure the actual edge at several points. Folded metal, seam sealer, plastic trim, weather seals, and panel curves may cause the thickness to change along the same door.
3. Check the Product Profile
Current product images show an approximate profile of 8 mm × 10 mm. Treat this as a product reference rather than a guarantee that the trim fits every vehicle edge.
Compare:
- Channel opening width
- Overall trim height
- Internal clip position
- Vehicle-edge thickness
- Available gap when the panel closes
- Weather-seal clearance
The outside size of the trim matters because the strip becomes thicker than the bare vehicle edge after installation.
4. Check the Full Door-Closing Clearance
A trim may fit the exposed edge but still interfere when the door closes.
Before cutting the full piece, use a short test section and close the door slowly.
Confirm that the trim does not:
- Press heavily against the body
- Fold beneath the weather seal
- Create unusual resistance
- Prevent the latch from engaging normally
- Cause the door to sit unevenly
- Create new wind or water sealing gaps
- Contact painted surfaces with excessive pressure
Closing Safety Warning
Never force a door, hood, or trunk closed after installing edge trim. Remove or reposition the trim immediately if normal closing, latching, sealing, or alignment changes.
5. Avoid Hinges, Latches, Wiring, and Sensors
The trim should cover only a compatible exposed edge.
Keep it away from:
- Door hinges
- Door latches and striker areas
- Child-lock mechanisms
- Door wiring boots
- Drainage openings
- Door-mounted sensors
- Airbag markings or deployment areas
- Powered sliding-door components
- Soft-close mechanisms
- Weather-seal mounting points
Do not install trim across a component simply to create one continuous line.
6. Measure the Required Length
Measure every intended section independently.
Possible sections include:
- Front-left door edge
- Front-right door edge
- Rear-left door edge
- Rear-right door edge
- Lower front-door edges
- Trunk or hatch edge
- Compatible hood section
Add only a small allowance for final trimming. Excess material can make installation harder and increase the chance of unsupported ends.
7. Inspect the Existing Paint and Edge Condition
Before installation, inspect the edge carefully.
Look for:
- Paint chips
- Loose paint
- Rust or corrosion
- Sharp damaged metal
- Bent seams
- Old adhesive residue
- Body-repair filler
- Cracked plastic trim
- Existing edge guards
Do not hide active rust, sharp damage, or unstable paint beneath the trim. Covering damaged areas may make inspection and future repair more difficult.
8. Prepare the Installation Tools
A basic installation may require:
- Measuring tape
- Masking tape or removable markers
- Clean microfiber towels
- Mild automotive soap
- Clean water
- A suitable cutting tool for reinforced trim
- Work gloves
- Plastic trim tool or soft pressing tool when needed
Because the product contains an internal metal clip structure, use a cutting tool capable of making a clean cut through both the outer layer and reinforced core.
Keep cutting tools away from vehicle paint and interior trim.
9. Clean and Dry the Vehicle Edge
Dirt trapped inside the channel may mark the edge or prevent the trim from seating evenly.
- Rinse away loose dirt.
- Wash the edge using compatible automotive soap.
- Clean both sides of the edge.
- Remove mud, wax, grease, and old residue.
- Rinse thoroughly.
- Dry with a clean microfiber towel.
- Allow moisture inside seams and corners to evaporate.
The edge should be fully clean and dry before press-on installation.
10. Test-Fit the Uncut Roll
Before making the first cut, press a short portion of the roll onto the edge.
Check:
- How much force is required
- Whether the channel seats fully
- Whether the trim sits straight
- How it follows curves
- Whether the internal clips mark the surface
- Whether the panel closes normally
Remove the test section and inspect the edge before continuing.
11. Choose the Starting Point
For a vertical door edge, a practical starting point is usually near one end of the usable exposed section.
Avoid starting directly:
- At a sharp corner
- Beside the latch
- Inside a hinge area
- Over a strong thickness change
- Where the weather seal folds tightly
Leave enough clearance at both ends so the trim does not contact surrounding components.

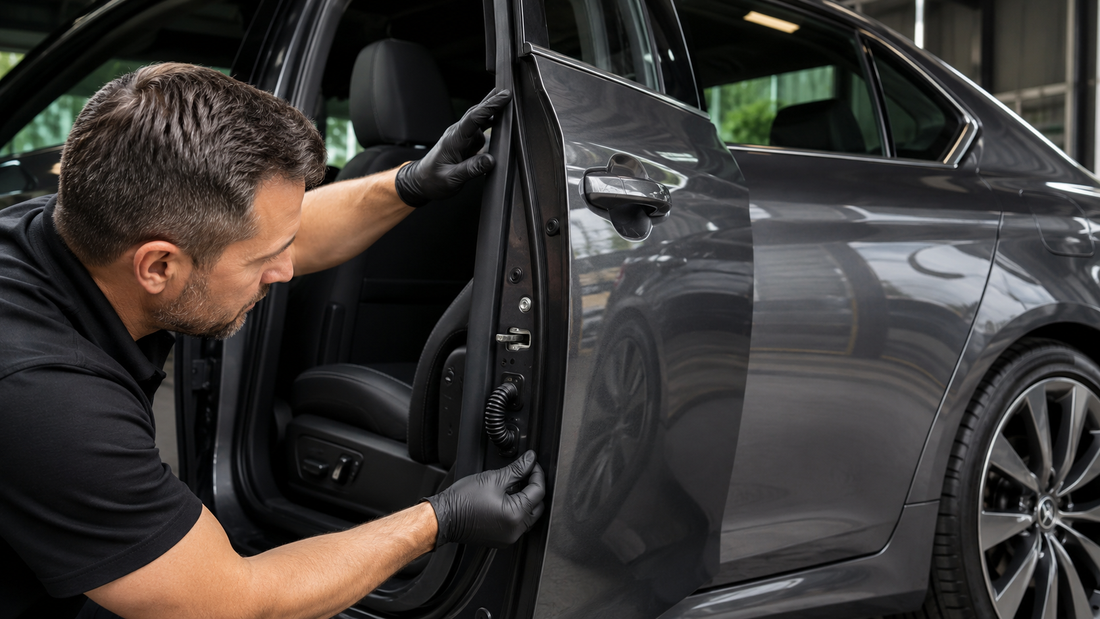

12. Press the Channel Onto the Edge Gradually
Align the U-shaped opening with the panel edge and press it on in short sections.
- Seat the first short section.
- Check that the trim is fully engaged on both sides.
- Continue pressing in small increments.
- Follow the natural line of the panel.
- Check alignment every few centimeters.
- Stop before curves that require adjustment.
Do not pull the strip tightly as you install it. Stretching can cause the ends to retract or lift later.
13. Work Slowly Around Curves
Curved edges require more attention than straight sections.
For a gentle curve:
- Install smaller sections at a time.
- Keep the channel centered on the edge.
- Avoid twisting the trim.
- Use light, even pressure.
- Check that the outer surface is not buckling.
Very tight corners may not be suitable for continuous installation. Ending one piece before a difficult corner and beginning a separate section afterward may produce a cleaner and safer result.
14. Understand the Internal Clip Structure

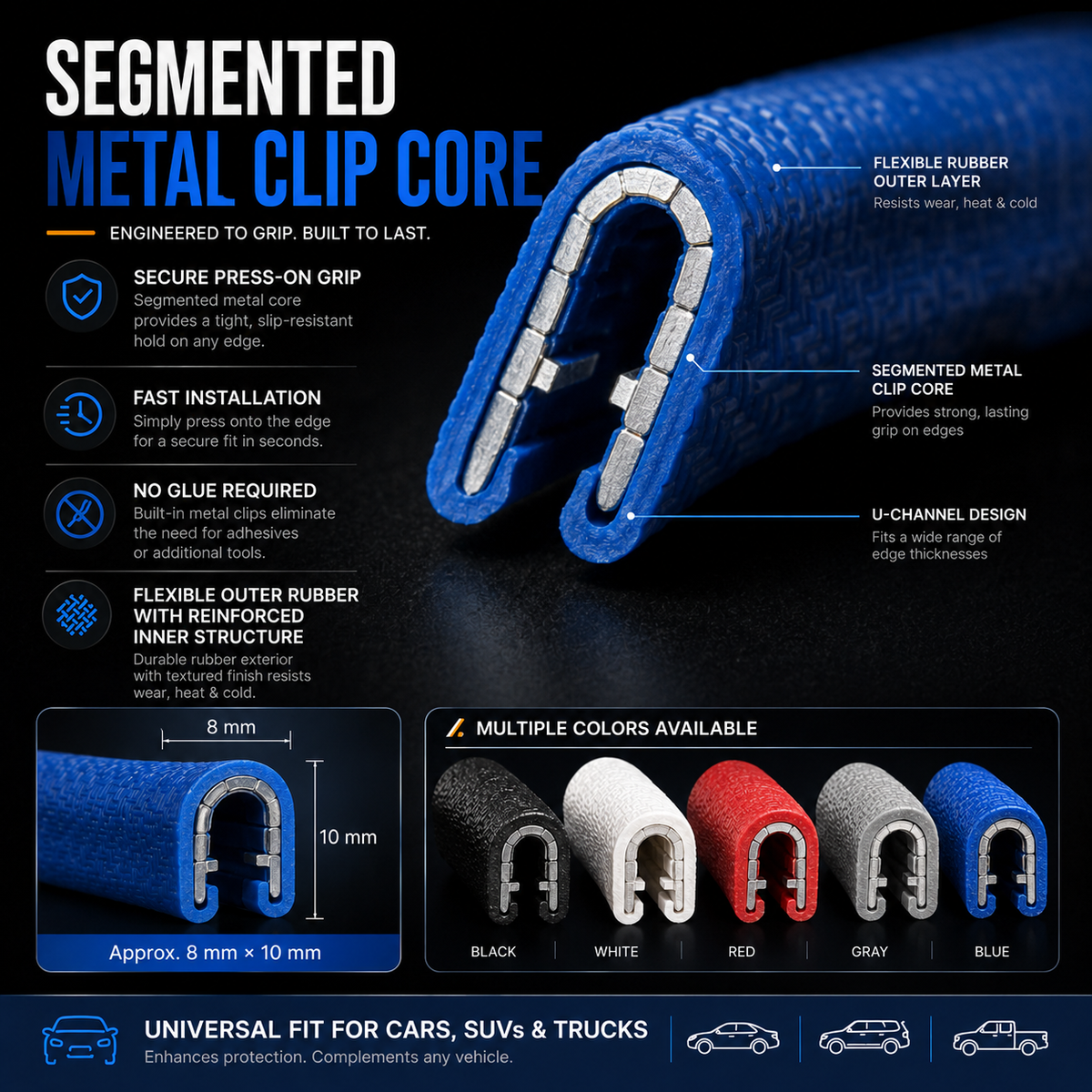

The trim shown on the product page uses a segmented metal clip core inside a flexible outer layer.
The clip structure helps create gripping pressure, but it also means:
- The trim should not be forced over an oversized edge.
- Cut ends should be clean and inspected.
- Damaged internal clips should not be left exposed.
- The strip should not be repeatedly bent sharply in one location.
- The core should remain fully covered by the outer material.
15. Cut the Trim Only After Confirming the Length
Do not cut the final piece before checking the actual installed path.
When ready:
- Mark the final cut position.
- Remove enough of the loose roll to create safe cutting space.
- Use an appropriate cutting tool.
- Cut straight across the trim.
- Inspect the outer layer and internal core.
- Remove sharp or exposed damaged material.
- Press the final section fully onto the edge.
Do not cut while the tool is resting against vehicle paint.
16. Leave Safe Clearance at Both Ends
The ends should not enter moving or compressed areas.
Leave clearance from:
- Hinges
- Latches
- Door seals
- Drain holes
- Electrical components
- Panel corners with extreme compression
A clean end placed on a straight supported edge is usually more stable than a longer section forced into a complex corner.
17. Press the Entire Length Again
After the piece is cut, press along the complete installed section.
Check for:
- Sections that are not fully seated
- Twisted areas
- Loose corners
- Bulges around curves
- Exposed clip material
- Movement under light hand pressure
Do not strike the trim with a hard metal hammer. Use hand pressure or a suitable soft tool.
18. Test the Door, Trunk, or Hood Slowly
Operate the panel carefully before considering installation complete.
- Move the panel through part of its normal range.
- Listen for rubbing or contact.
- Check weather-seal movement.
- Close the panel slowly.
- Confirm normal latch engagement.
- Open it again and inspect the trim.
- Look for compression marks or movement.
Remove the trim if the panel requires additional force or no longer aligns normally.
19. Check for Interference With Weather Seals
Weather seals help manage wind, water, and cabin noise.
A door edge guard should not:
- Fold the seal out of position
- Create a permanent gap
- Cut or pinch the rubber
- Prevent the seal from contacting the body
- Hold water against an unsuitable area
Inspect the seal after several opening and closing cycles.
20. Check the Installation Before Driving
Before driving, confirm that:
- The trim is fully seated.
- No section is loose.
- Both cut ends are secure.
- The internal clip is not exposed.
- The door closes and latches normally.
- The trim does not contact tires or moving suspension parts.
- The strip does not cover lights, reflectors, sensors, or required markings.
Pre-Drive Safety Check
Do not drive with a loose section of trim. A detached strip may become road debris or contact another vehicle component.
Choosing a Door Edge Guard Color
Current options include black, white, red, gray, and blue.
Color choices may be approached in two ways:
Low-Profile Match
- Black on black or dark trim
- Gray on silver or gray vehicles
- White on white panels
Contrast Accent
- Red against black, gray, or white paint
- Blue as a visible exterior accent
- White against dark vehicle paint
Fit, grip, closing clearance, and safety should be confirmed before selecting color.
Where Should U-Channel Trim Not Be Installed?
Avoid installation on:
- Edges that are too thick or too thin
- Loose or unstable paint
- Sharp damaged metal
- Strongly corroded edges
- Airbag deployment areas
- Hinge mechanisms
- Latch engagement surfaces
- Powered-door tracks
- Edges with insufficient closing clearance
- Drainage openings
- Areas where the trim can contact tires or moving parts
How to Clean the Installed Edge Guard
Clean the trim as part of routine exterior care.
- Rinse loose dirt before wiping.
- Use mild automotive soap.
- Use a soft microfiber towel or soft brush.
- Clean both outer sides of the trim.
- Inspect the cut ends.
- Check for movement after washing.
- Remove trapped debris when necessary.
Avoid aiming high-pressure water directly into a loose end or beneath a partially detached section.
How Often Should the Trim Be Inspected?
Inspect the edge guard:
- After initial installation
- After the first few drives
- After automatic or pressure washing
- After extreme heat or cold
- After a door contacts another object
- Whenever the door sound or closing feel changes
Regular inspection is especially important because the product relies on mechanical gripping rather than permanent attachment.
When Should the Edge Guard Be Removed or Replaced?
Remove or replace the trim when:
- It repeatedly becomes loose.
- The outer material cracks or tears.
- The internal clip becomes exposed.
- The strip slides along the edge.
- Rust, moisture, or debris is found underneath.
- The door no longer closes normally.
- The trim begins damaging the weather seal.
- The edge underneath requires repair.
How to Remove U-Channel Door Edge Guard
Removal is generally completed by pulling the trim off the edge gradually.
- Open and support the door or panel safely.
- Begin at an accessible end.
- Pull the trim away slowly.
- Work along the edge in small sections.
- Avoid scraping the paint with the internal clips.
- Inspect the exposed edge.
- Clean trapped dirt and moisture.
- Repair paint damage or corrosion before reinstalling trim.
Do not pull aggressively around tight curves, damaged paint, or rusted edges.
Common Installation Mistakes
Skipping the Edge-Thickness Check
A channel that does not match the edge cannot grip correctly.
Cutting Before Test-Fitting
The actual installed path may require more or less material than a straight measurement suggests.
Stretching the Trim During Installation
Stretching may cause the ends to retract or move after installation.
Forcing It Around Tight Corners
Sharp curves can twist the channel and weaken its grip.
Installing Across the Latch or Hinge Area
The trim must not interfere with vehicle mechanisms.
Ignoring Weather-Seal Clearance
Compression against a seal may affect closing and sealing.
Using an Unsuitable Cutting Tool
A damaged cut may expose the internal metal core or leave an unstable end.
Driving Without Inspecting the Installation
Loose trim may detach during travel.
Final Installation Checklist
- I identified the exact compatible installation edge.
- I measured the edge thickness at several points.
- I checked the channel profile and closing clearance.
- The paint and metal edge are stable and undamaged.
- The edge is clean and completely dry.
- I test-fitted the trim before cutting.
- I kept the trim clear of hinges, latches, seals, sensors, and drainage.
- I installed the trim gradually without stretching.
- The cut ends are clean and securely seated.
- The door, trunk, or hood closes and latches normally.
- No internal clip material is exposed.
- The complete strip is secure before driving.
Frequently Asked Questions
Do U-channel door edge guards fit every vehicle?
No. Fit depends on the edge thickness, panel shape, curves, closing clearance, weather seals, trim design, and vehicle structure.
Does this type of edge guard require adhesive?
This product uses a press-on U-channel design with an internal gripping core. A compatible edge and secure mechanical grip are still required.
Can I use it on trunk or hood edges?
Only on compatible exposed edges with enough clearance and no interference with latches, seals, sensors, wiring, or closing operation.
How do I know whether the trim is too loose?
It is too loose when it slides under light hand pressure, does not remain seated around curves, or moves after opening and closing the door.
Can I install it over chipped paint?
Inspect and repair unstable paint, corrosion, or sharp damage before installation. The trim should not be used to hide an untreated damaged edge.
What should I use to cut the strip?
Use an appropriate tool capable of cutting both the flexible outer material and internal reinforced clip structure cleanly. Keep the tool away from vehicle paint.
Why does the end keep lifting?
Possible causes include an incompatible edge thickness, stretching during installation, a tight curve, an unsupported end, damaged internal clips, or insufficient closing clearance.
Can the trim affect door seals?
Yes. Remove or reposition the strip if it pinches, folds, displaces, or prevents the weather seal from working normally.
How often should I inspect it?
Inspect it after installation, after the first few drives, after washing, after extreme weather, and whenever the door-closing feel changes.
Can I reuse the trim after removing it?
Reuse depends on the condition of the internal clips and outer layer. Do not reinstall trim that is loose, stretched, cracked, bent, or exposes the internal core.
Final Thoughts
U-channel car door edge guard trim can add a practical contact layer to compatible door, trunk, hood, and exterior panel edges.
The most important checks are edge thickness, full channel engagement, weather-seal clearance, and normal panel closing. Measure before cutting, install gradually, avoid excessive stretching, and inspect the trim regularly.
Explore the U-Channel Car Door Edge Guard Trim – 5M Anti-Scratch Protective Strip and compare the channel profile and installation images with your vehicle before ordering.
Related Guides:
